25HL Auto Brew Master
2 Tank Brewhouse

Our new, state-of-art, Fully Automated Compact Brewing System combines a mash/lauter combi vessel with a copper/whirlpool combi vessel, making it the pinnacle of efficiency and quality.

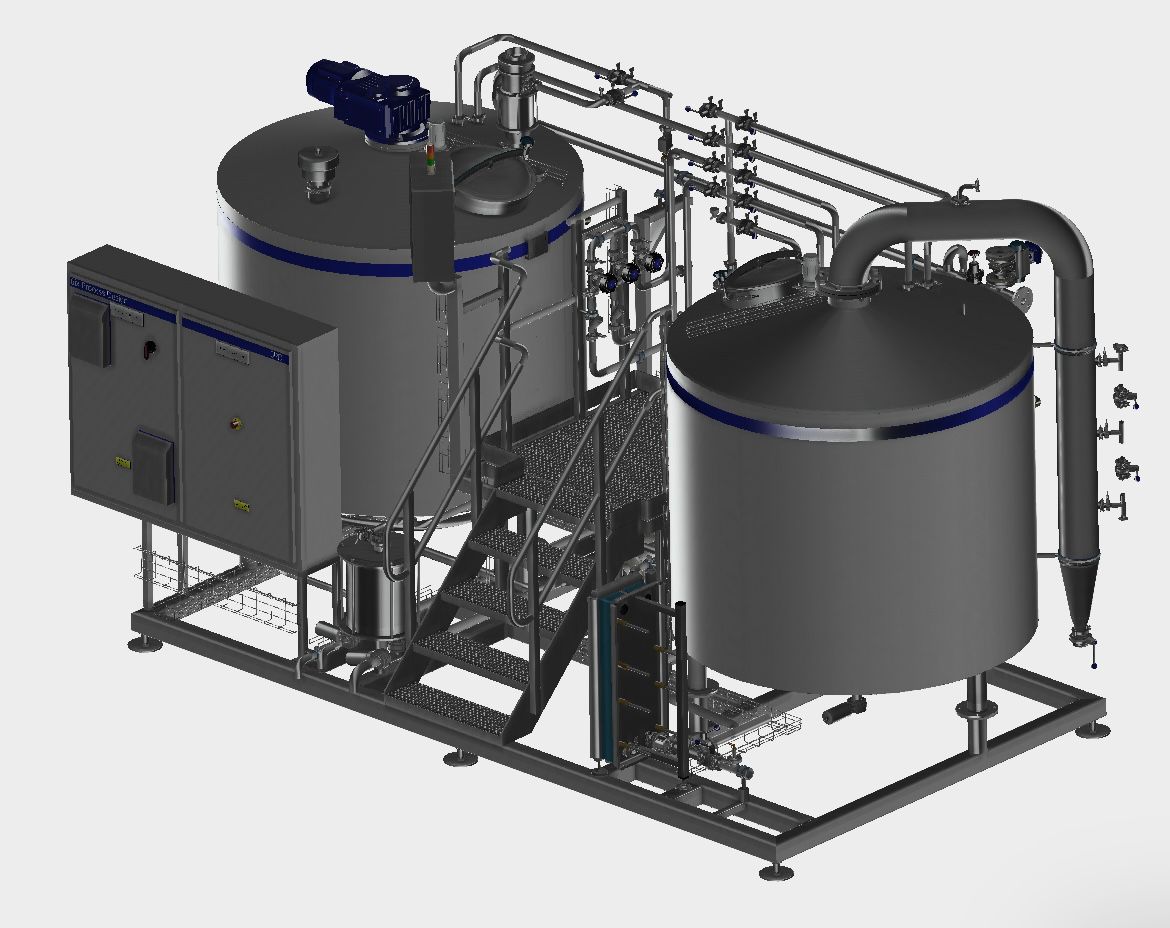

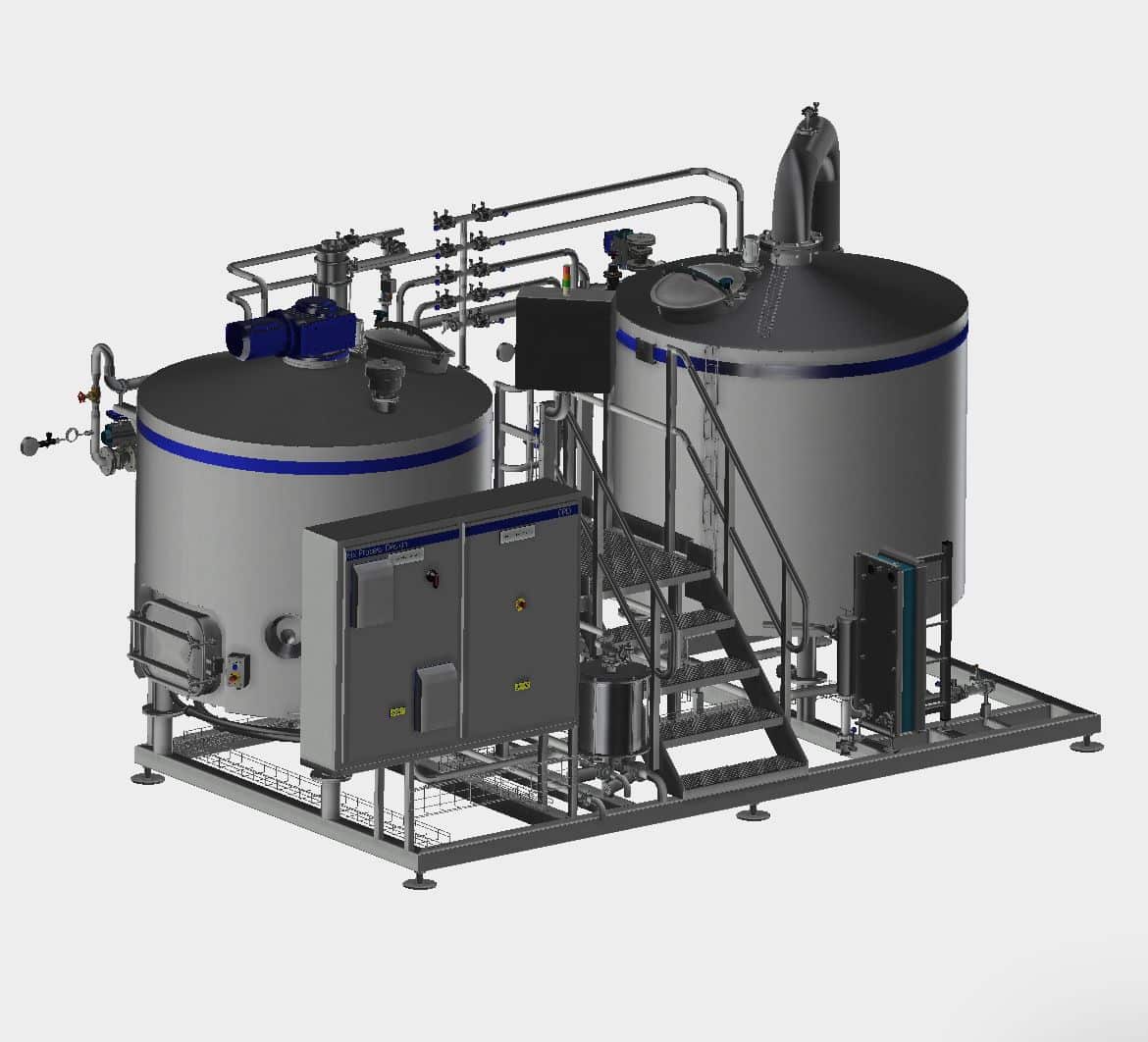

20HL Auto Brew Master
20HL Auto Brew Master

Brewery Equipment

25HL Auto Brew Master

At 6ix Process Design Ltd we offer an extensive selection of various skid systems & individual tanks to meet with our clients requirements. Whether it be Steam, Electric, Thermal fluid or Gas we can be sure to find a way to meet your needs. Our standard size of systems range from 10HL – 100HL.

Lets have a look below at our standard 2 Vessel skid compact brewhouse system the Auto Brew Master.

DOWNLOAD – 2025 – Auto Brew Master A4 Brochure pdf

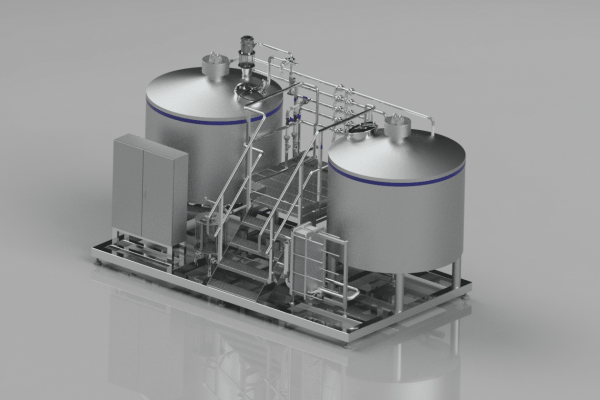

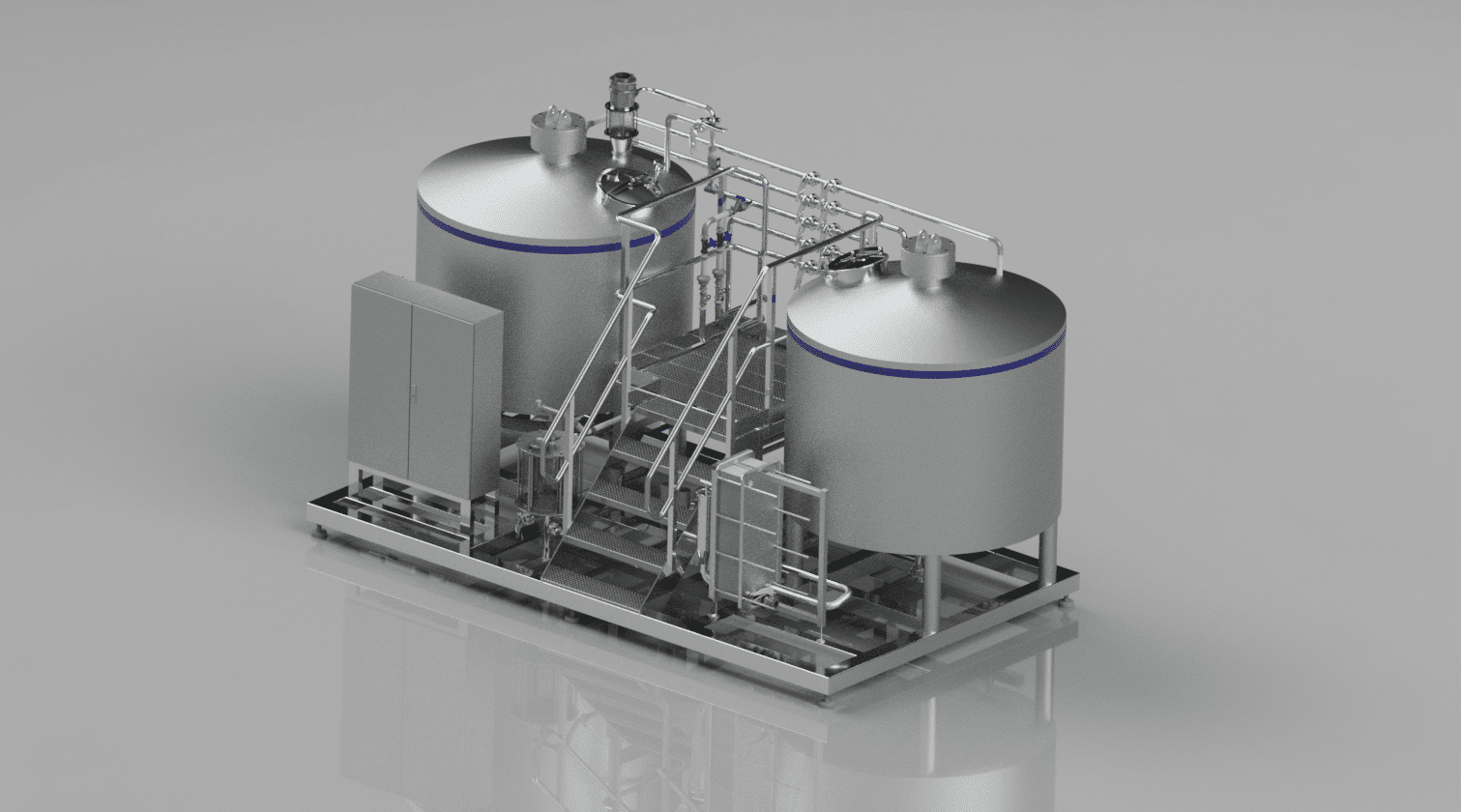

Auto Brew Master – Compact 2 vessel brewing system

At a glance…

  • Fully assembled “Plug and Play” skid-mounted brewhouse
  • Compact design
  • 10-100HL Brewlength
  • Various heating options
  • Custom built to your requirements with options for mash mixers, Lauter blades, Step mashing etc
  • Semi automatic control as standard, Fully automatic available
  • User friendly, built with craft brewers in mind
  • Under 5 hours average turn time from start to finish
  • Minimal installation on site, drop, connect, brew.
  • 10 years guarantee, manufactured with pride in the UK
  • 2 years’ free servicing

Key features...

The compact design is perfect for any space, optimised installation and commissioning times, giving uncompromised quality and reliability plus less downtime for established companies.

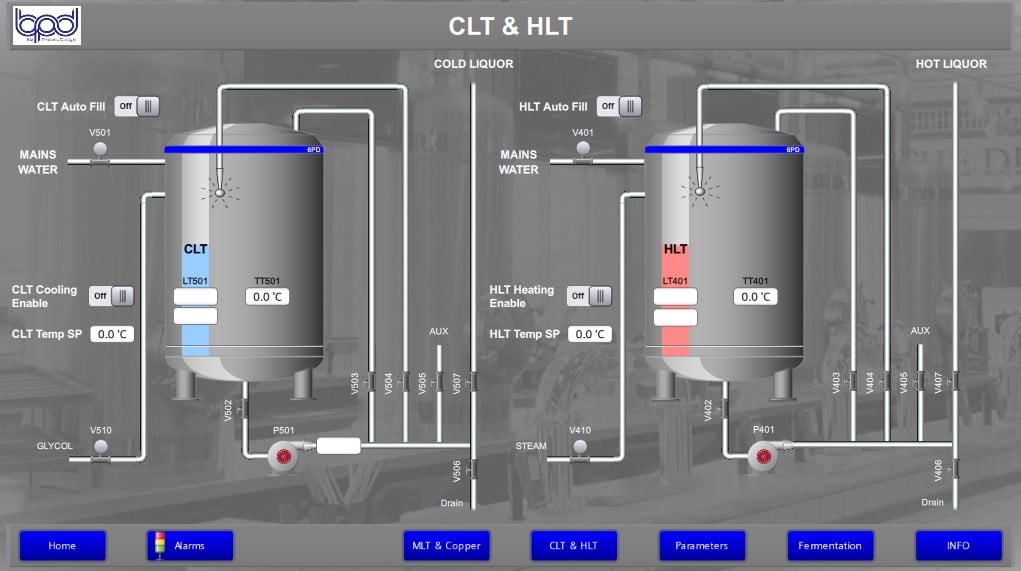

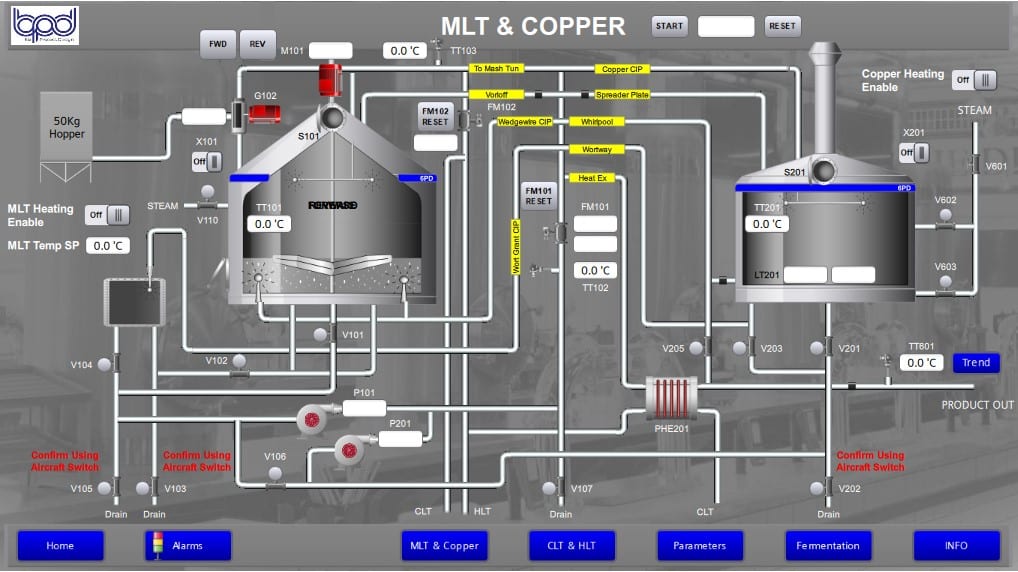

Fully Automated – Simplified brewing and consistent batches with our user-friendly interface, Intuitive, highly flexible operating system with state-of-the-art PLC control with integrated semi-automatic capability to give the brewer full control over the system for individually crafted beers.

Easy Recipe creation, adaptation, and fully sequenced operation – allowing maximum efficiency, minimum operator input and perfect replication of new and existing products.

Our intelligent control system is equipped with a number of unrivalled features, which include self-diagnostics and preventative maintenance alerts, email notifications and warnings together with data logging and remote operation.

The ability to operate the brewhouse from your smartphone/tablet.



MLT

  • The Mash Lauter Tun is our primary mashing and wort separation vessel. It utilises a combination static Hydration and Mixing from the Rake arm assembly to ensure a consistent homogeneous mash and temperature every time. This MLT can in turn be preheated of simultaneously heated during mashing in operations via its steam heating jacket.
  • The MLT feed water supply utilises in line mixing of Hot and Colt incoming liquor this allows for optimal temperatures to be achieved with ease.
  • The MLT is also equipt with distinct features such as a dual entry point vorloff system, with entry points into the mash bed and over the mash bed allowing for effective, even temperature and mixing during step mashing operations and wort clarifying operations.
  • The Sparge assembly is utilises a full span rotating sparge arm ensuring absolute coverage of the grain bed and even distribution of sparge liqour keeping pooling to a minimum.
  • The rake and knives assembly has been designed with the craft brewer in mind allowing for easy management of even the most difficult of grists. The assembly is also fitted with a discharge plough to allow easy removal of spent grains our the side of the Vessel.
  • The vessel is fit with above and below CIP spray balls and jets to allow complete flushing and CIP of the vessel without the need for disruptive removable of lauter plates and the need or risk of vessel entry.
  • Overall the vessel has been specified to an over size to allow the production of High gravity worts. The bed loading can also be reduced by the addition of a mash displacement collar around the centre post of the Rake arm assembly this makes the Brew-IX truly unique as it allows for the production of high and low gravity wort without compromise or the need to add additional sized Lauter vessels.

Copper/Whirlpool

  • The Copper is fully steam jacketed on the cone and barrel, both are individually controlled allowing for immediate application of heat and reduction in time required to raise the boil. Our Samson control steam valves allow extremely accurate control over boil temps.
  • The Copper is bottom fed minimising hot side aeration during Lauter operations.
  • The Copper is equipped with a spreader plate system and is mechanically driven via a LOW shear pump ensuring careful handling of the wort and maintaining an exceptional level of control regarding evaporation of volatile compounds and concentration of wort gravity.
  • The Copper is equipped with a tangential inlet to allow whirlpool operations to take place in vessel this wort route can also be redirected through the heat exchanger to allow for alteration of the copper temperature or whirlpool stand temperature, for instance in the reduction of alpha acid isomerisation on Hop additions.
  • The Copper can also be easily equipped with an External wort boiler as modular standard upon customer request.
  • The Copper/Whirlpool has also been fitted with a recirc process loop from the heat exchanger to allow for cooling of worts or staged cooling cycles.

Capabilities

Single Turn Shift:

  • Single turn time 25HL: 04.45Hrs process time
  • Single turn time with prep & CIP: 05.45Hrs

Double Turn Shift:

  • Double turn time 50HL: 07.00Hrs process time

Triple Turn Shift:

  • Triple turn time 75HL: 10.00Hrs process time

24HR Turn Shift:

  • Eight turn time 200HL: 22.00Hrs process time
Guarantee

Confidence of our quality

All our tanks Are fabricated in our workshop & come with a 10 year warranty & minimum 25 year shelf life Guarantee, Moving parts come with a 3 year warranty. All Fabrication requires signing off from customer prior to construction once happy with CAD drawing supplied.
